Causes of Solar Installation Fire Outbreaks and How to Prevent Them
The adoption of solar energy is rapidly increasing across homes and businesses. Safety is one of the most critical aspects of installation. Yet, it often gets overlooked. Solar energy is clean, sustainable, and cost-saving. If poorly installed or maintained, it can become a potential fire hazard.
As a certified solar professional, I have years of field experience in solar system design, installation, and maintenance. I’ve witnessed firsthand how small installation errors or wrong design choices can lead to devastating outcomes.
In this article, I’ll break down the major causes of solar installation fire outbreaks. I will share real-world examples and provide expert prevention tips. I will also demonstrate how the Globisun App can assist you. It helps in designing safer and more compliant solar systems from the start.
🌞 Why Fire Safety Matters in Solar Installations
Solar power systems run using high-voltage DC electricity, which behaves differently from the AC power most people are familiar with.
Unlike AC, DC current doesn’t pass zero voltage. This means once an arc (spark) starts, it can persist. It generates intense heat capable of melting insulation or igniting materials.
When system components are poorly designed, undersized, or improperly connected, this heat risk multiplies.
That’s why solar safety begins from the design stage, not just installation. Apps like Globisun now make it easier to accurately size panels, batteries, and inverters. They ensure components work in harmony without overloads or overheating. This is one of the smartest ways to prevent electrical fires before they ever start.
⚡ Common Causes of Solar Fire Outbreaks
1️⃣ Poor Electrical Connections or Loose Terminals
This is the most common culprit.
Loose or poorly crimped connectors create high-resistance points, causing heat buildup that eventually melts the insulation and sparks a fire.
Many fires start inside junction boxes, combiner boxes, or inverter terminals simply because a connector wasn’t tightened correctly.
Example:
During an inspection on a 5kW residential system, a DC connector showed signs of charring. It had been hand-tightened instead of properly crimped. A few more weeks of exposure and it could have ignited the roof.
Prevention Tip:
Use torque tools and high-quality crimpers. Always test for continuity and resistance levels after connection.
When designing, use the Globisun App’s wiring calculator. It automatically suggests proper cable sizes. It also recommends connection methods to minimize resistance and heat buildup.
2️⃣ Use of Substandard Cables or Connectors
Cheap or counterfeit cables and connectors are a major hazard.
Substandard PV cables often lack proper insulation, are not UV resistant, and degrade quickly under sunlight. Fake MC4 connectors also fail to lock properly, causing moisture ingress and DC arcing.
Prevention Tip:
Always insist on solar-grade PV1-F cables and MC4-certified connectors. Never mix different connector brands — they do not mate properly, leading to arcing.
Globisun’s component database helps identify certified PV materials and accessories, helping installers make safer choices.
3️⃣ Wrong Fuse Ratings or Undersized Cables
Every solar system has specific current-carrying requirements.
Using undersized cables or improper fuse ratings leads to overheating, insulation breakdown, and potential ignition.
Unfortunately, many DIY installations ignore voltage drop calculations, running thin cables for long distances.
Prevention Tip:
Use Globisun’s accurate solar wiring calculator. It automatically recommends correct cable sizes and fuse ratings. These recommendations are based on system load, voltage, and distance.
Always follow IEC 60364 and NEC 690 wiring standards.
4️⃣ Poor System Design and Component Mismatch
Many fire incidents trace back to poor design. Causes include mismatched panels and inverters. Improper string configurations also contribute. Additionally, using a battery system not compatible with the charge controller is an issue.
When panels exceed inverter voltage limits, excessive heat accumulates in the terminals.
Example:
A user connected 8 panels in series on a 24V inverter. The open-circuit voltage exceeded the inverter’s tolerance, causing terminal melting and smoke.
Prevention Tip:
Always use a reliable sizing tool like Globisun. It automatically checks for compatibility between panels, batteries, and inverters before installation.
It prevents mismatch errors that often go unnoticed until damage occurs.

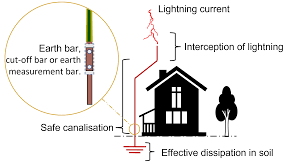

5️⃣ Improper Earthing and Lightning Protection
Solar systems, especially rooftop arrays, are lightning magnets.
Without proper earthing and surge protection, a lightning strike or power surge can travel through the system. It can damage components and spark a fire.
Prevention Tip:
Implement equipotential bonding — all metallic components, including frames and mounts, should be connected to a common earth.
Install surge protection devices (SPD) on both the DC and AC sides.
Globisun’s design recommendations include proper earthing specifications for different system sizes and environments.
6️⃣ DC Arc Faults and Overheating Junction Boxes
DC arcs can generate temperatures of over 3000°C, enough to ignite any nearby combustible material. They often occur in loose connections, corroded terminals, or overloaded junction boxes.
Prevention Tip:
- Use arc fault detection devices (AFDD).
- Seal all junction boxes properly to prevent moisture ingress.
- Regularly inspect boxes for discoloration, burnt smells, or melted insulation.
Globisun can help schedule maintenance reminders and log your system’s inspection reports for easy tracking.
7️⃣ Unqualified Installers or Lack of Professional Supervision
The truth is, most solar fires are not caused by solar energy itself, but by human error.
Technicians who lack understanding of DC behavior often make dangerous shortcuts. They might twist wires instead of using connectors. Sometimes they skip fuses or oversize batteries.
Prevention Tip:
Hire certified solar installers who understand NEC, IEC, or SON standards.
Globisun lists verified inverter service centers and professionals you can consult for safe installation, maintenance, or troubleshooting.
🔍 Real-Life Scenarios: How Fires Start
- Case 1: A roof-mounted solar array caught fire after rodents chewed through exposed DC cables not protected in conduits.
- Case 2: In another instance, installers joined solar cables using electrical tape instead of MC4 connectors. A few weeks later, arcing caused a roof fire.
- Case 3: A poorly designed hybrid system used mixed inverter brands. These brands had incompatible voltage ratings. This incompatibility led to a thermal event inside the control panel.
All these incidents could have been avoided with proper design tools, quality materials, and professional oversight. Globisun promotes all of these through its intelligent solar sizing and monitoring features.
🧰 How to Prevent Solar Fire Hazards
✅ Follow International Standards
Comply with IEC 62548, IEC 60364, and NEC 690 for PV system design and wiring. These standards specify best practices for cable sizing, insulation, and protection.
✅ Use Certified Components
Avoid counterfeit components. Use original MC4 connectors, branded inverters, and flame-retardant PV cables.
✅ Ensure Proper Cable Management
Keep DC and AC runs separate. Protect all cables in UV-resistant conduits or cable trays and avoid sharp bends or unprotected joints.
✅ Schedule Regular Maintenance
Conduct preventive maintenance every 6–12 months. Use infrared thermal imaging to detect hotspots early.
Globisun lets you log maintenance data and monitor system health, improving long-term safety.
✅ Hire Certified Installers
Always request to see the installer’s certification or training record. Poor workmanship is the #1 cause of PV system hazards.
✅ Install Safety Devices
Equip your system with rapid shutdown switches, DC isolators, and fire-resistant junction boxes.
Globisun recommends these during its design simulation process.
💡 Final Thoughts: Safety Before Savings
Solar energy remains one of the safest and most rewarding investments. However, like any electrical system, it demands proper design. It also requires quality materials and professional handling.
Remember — solar fires are preventable, and most begin with design mistakes or poor installation.
Before buying your next solar setup, use Globisun App. Run an accurate solar system sizing with it. Perform a cable and fuse calculation as well.
It ensures every component is safely matched — protecting your investment, your home, and your life.
🌍 Download Globisun today to design your solar system the right way. Calculate and maintain it with accuracy, compliance, and confidence.
